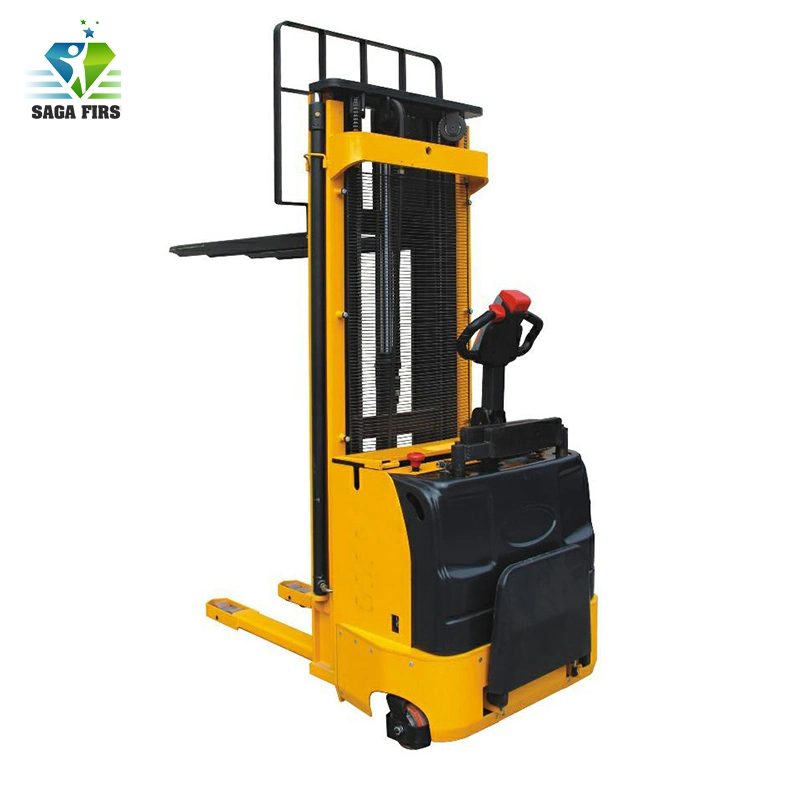

Full Electric Stacker
Advantages:
1. CURTIS controller from America
2. WINNER pump station from Taiwan
3. 240Ah large capacity battery
4. REMA plug from Germany
5. Reverse button, press this button, the truck will travel in reverse
6. Press the red button in an emergency, cut down all the power, stop the truck
7. Balance wheel with cover, protect the operator
8. Large maintenance room
9. With free lifting height, when forks raising, mast is still
| Item | Model No. | SL10-25 | SL10-31 | SL15-25 | SL15-31 |
| 1 | Drive Unit | Electric | |||
| 2 | Operation Type | Pedestrian | |||
| 3 | Rated Load Capacity (KG) | 1000 | 1500 | ||
| 4 | Load center MM | 600 | |||
| 5 | Overall Length (MM) | 1924 | |||
| 6 | Overall Width (MM) | 840 | |||
| 7 | Overall Height (MM) | 1825 | 2125 | 1825 | 2125 |
| 8 | Lifting Height (MM) | 2500 | 3100 | 2500 | 3100 |
| 9 | Height (MM)-Fork Face | 90 | |||
| 10 | Fork Size (MM) | 1150*160*56 | |||
| 11 | Max Fork Width (mm) | 540/680 | |||
| 12 | Min. Turning Radius(mm) | 1475 | |||
| 13 | 90°Stacking Aisle(MM) (1000*1200 Pallet)--Ast | 2350 | |||
| 14 | Driving Motor (KW) | 0.75 | |||
| 15 | Lifting Motor (KW) | 2.0 | |||
| 16 | Battery(Ah/V) | 100/24 | |||
| 17 | Service Weight (w/o battery)KG | 560 | 593 | 560 | 593 |
| 18 | Battery Weight(kg) | 45 | |||
Pictures Review:
Certifications: CE, ROHS, ISO
Our Service:
1.We can design the customerized stock order picker as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Operation video can be sent to you if needed.
5.Maintenance video will be given once the order picker break down to help you repair.
6.Parts of stock order picker can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The stock order picker adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the stock order picker.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
FACTORY SHOW:
