Ltmg electric stacker 500kg 0.5ton battery stacker with ce
Our company and factory
LTMG 500Kg semi electric stacker with 3m lifting heightThe specification of LTMG 500Kg semi electric stacker with 3m lifting height
LTMG 500Kg semi electric stacker with 3m lifting height
Our Customer
After sales service
Our company and factory

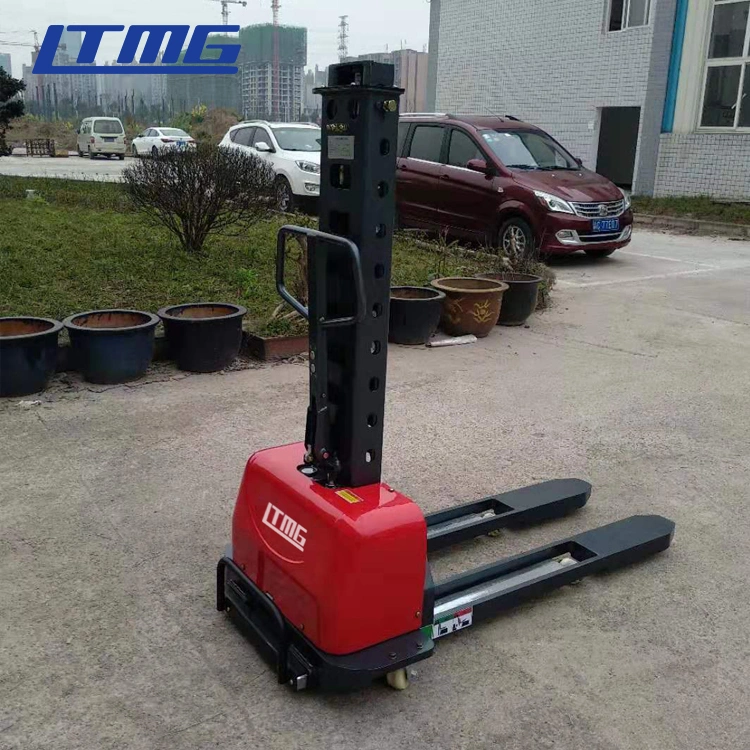

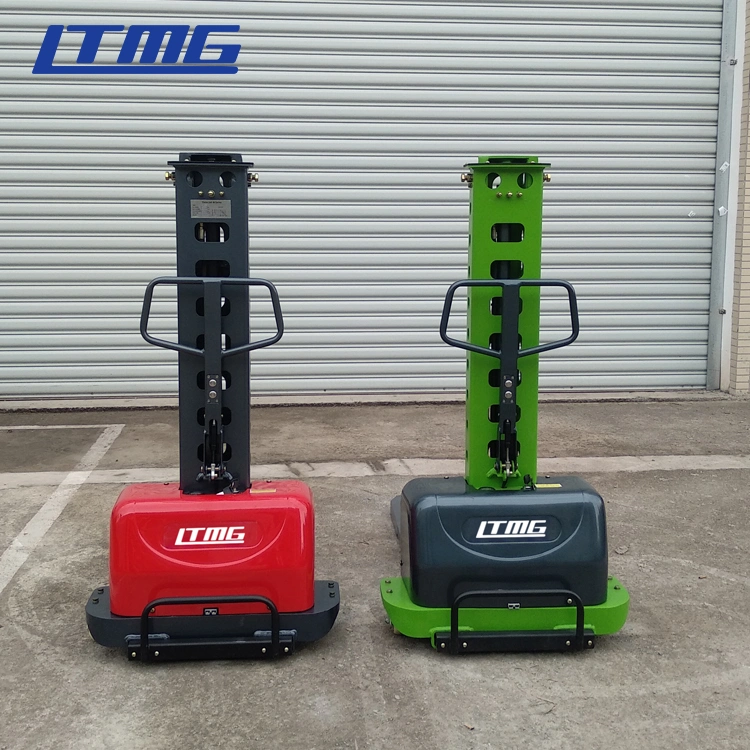

LTMG 500Kg semi electric stacker with 3m lifting height
Self loading pallet stacker
Rated capacity: 500kg
Max. lifting height: 1.3M
Power: Lift electronic, drive manual
Battery: 12V/45AH
Rated capacity: 500kg
Max. lifting height: 1.3M
Power: Lift electronic, drive manual
Battery: 12V/45AH
| Main Specification | |
| Power unit | Battery |
| Operator type | Manual Driving,Electrical Lifting |
| Rated load | 500kg |
| Operating weight | 245kg |
| Battery performance | 12V/45AH |
| Max. lifting height | 1300mm |
| Load center | 400mm |
| Max. fork width | 535mm |
| Lowered fork height | 85mm |
| Overall dimension(L*W*H) | 1570*786*1597mm |
| Min. turning radius | 1100mm |
| Rated power | DC0.8kw |
| Lifting speed | 55mm/s |
| Lowering speed | 70mm/s |
| Mast | Single mast |
LTMG 500Kg semi electric stacker with 3m lifting height
Our Customer
After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
