Product Description
1.Integration electric elements.
2.Buffer device for transverse steering axle.
3.Integral hood,effectual n heat insulation and noise reduction.
4.Energy-efficient hydraulic system.
5.Scientific ergonomic application.
6.Imported hydraulic brake elements.
7.Easy-opened engine hood.
8.Suitable for working in the container.
9.Strict environment protection design.
10.Streamlined frame.
11.Reliable forceps-disk type brake.

Detail images



Certification

Our Factory:

Contact:
NOE WANG
FQAQ1. What is your terms of packing?
Q5. Can you produce according to the samples?

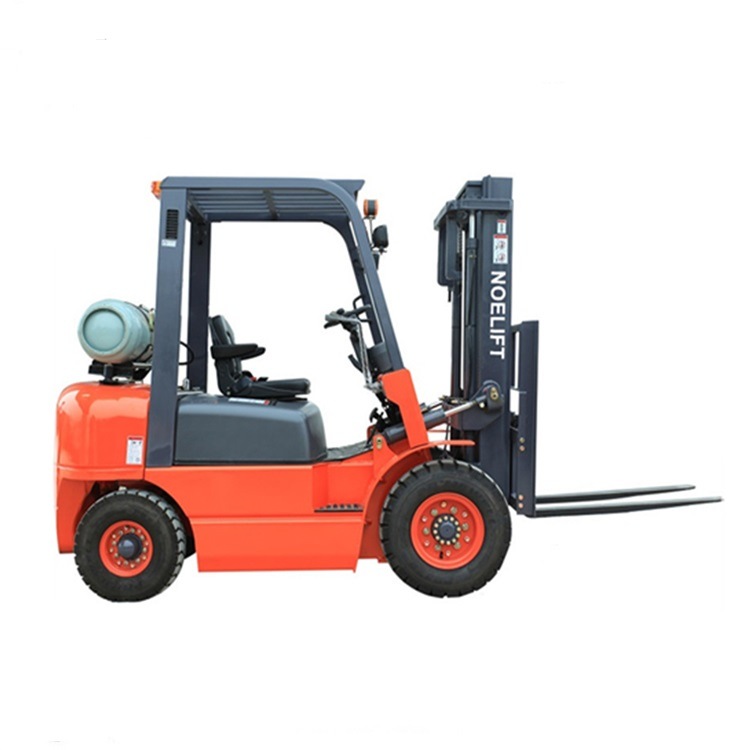

For America LPG 25 2.5t 3m/6m Gas and Gasoline Forklifts |
1.Integration electric elements.
2.Buffer device for transverse steering axle.
3.Integral hood,effectual n heat insulation and noise reduction.
4.Energy-efficient hydraulic system.
5.Scientific ergonomic application.
6.Imported hydraulic brake elements.
7.Easy-opened engine hood.
8.Suitable for working in the container.
9.Strict environment protection design.
10.Streamlined frame.
11.Reliable forceps-disk type brake.

Standard | |||
Brand | NOELIFT | ||
Model | FGL20 | ||
Power Type | Gasoline/Gas | ||
Rated Capacity | kg | 2000 | |
Max Lift Height | mm | 4500 | |
Load Centre | mm | 500 | |
Dimension | |||
Mast type | full free 3-stage | ||
Free Lift Height | mm | 995 | |
Mast Lowered Height | mm | 1995 | |
Overall length (Without fork) | mm | 2502 | |
Overall Width | mm | 1170 | |
Overhead Guard Height | mm | 2070 | |
Wheelbase | mm | 1600 | |
Fork Size | mm | 920×100×45 | |
Mast Tilt Angle | deg | 6°/12° | |
Turning Radius(outside) | mm | 2170 | |
Performance | |||
Speed | Travel (full load/no load) | km/h | 17/19 |
Lifting(full load/no load) | mm/s | 530/550 | |
Lowering(full load/no load) | mm/s | 450/550 | |
Tire | |||
Tire | Quantity | 2x/2 | |
Type | Pneumatic | ||
Driving Brake | Hydramatic Pedal | ||
Parking Brake | Mechanical Manual | ||
Control Device for Driving Transmitting | |||
Battery | V/AH | 12/80 | |
* Engine | Model | Nissan K21 | |
Rated output | kw/rpm | 31.2/2250 | |
Rated torque | N.m/rpm | 143.7/1600 | |
No.of cylinder | 4-89-83 | ||
Displacement | L | 2.065 | |
Transmission Type | Automatic |
