Product Application Technology Characteristics
- The handlebar is equipped with an emergency reverse switch for safe operation;
- Electric quantity display and working time display;
- Emergency power off switch;
- Turtle-shaped slow speed switch;
- Infinitely variable speed control;
- The spring adjustment structure balance wheel is wear resistant and has good stability;
- AC motor, no need to replace the carbon brush, with good ramp start performance;
- The motor has better dustproof and waterproof effects, making the brakes and motors more durable and reliable;
- The station pedal has a good shock absorber effect,comfortable operation and not easy to fatigue.
Technology Parameter

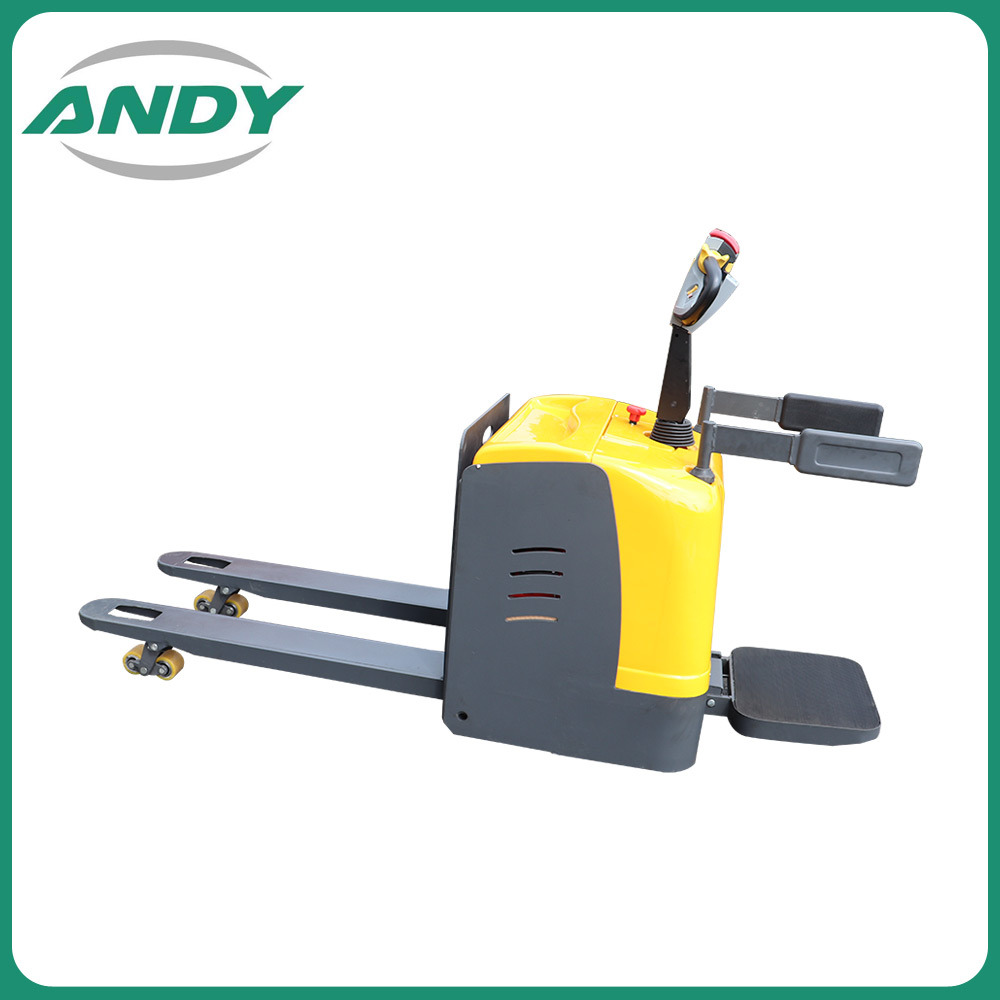

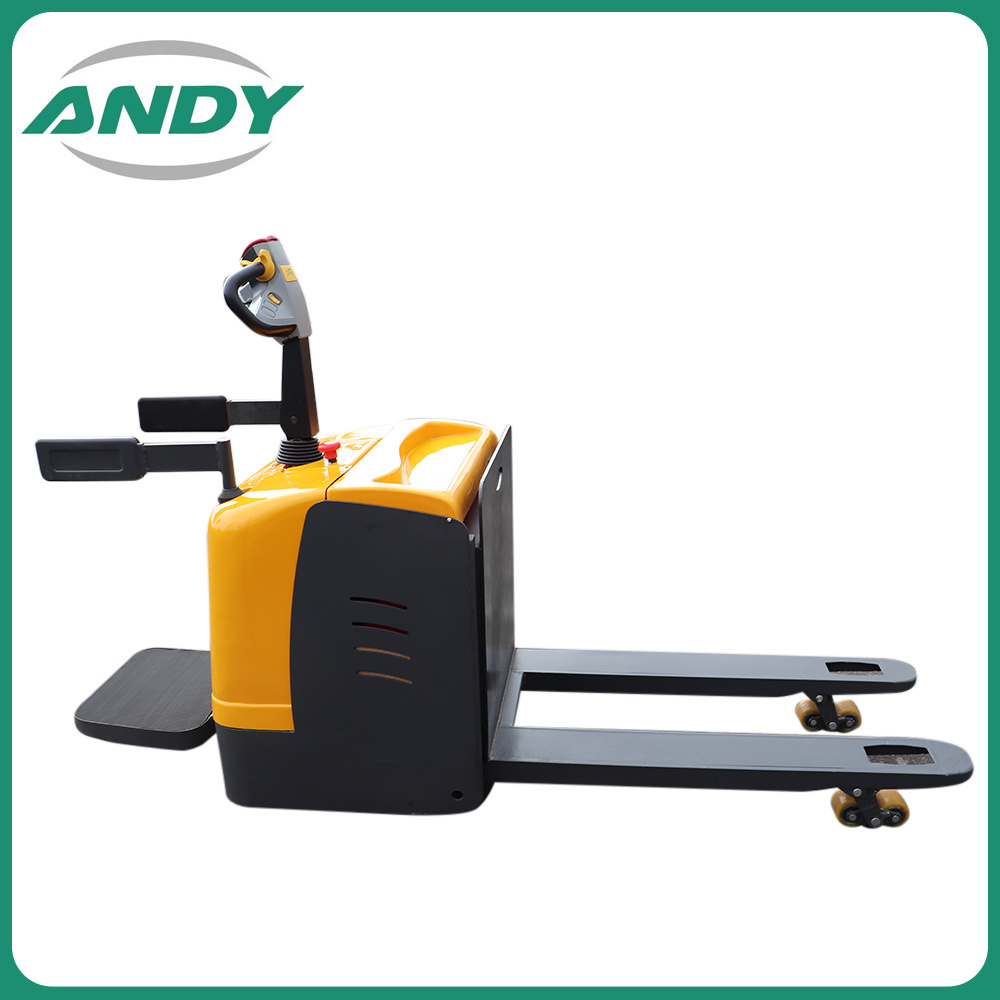

Product photos
Our Factory
Taixing Andylift Equipment Co.,Ltd. was founded in 2009, we have powerful R&D ability and advanced production technology that make sure of product quality. We have accumulated abundant experience of production and marketing for semi-electric stacker ,all-electric stacker, manual pallet truck ,electric pallet truck etc. So many years of experience makes us professional in the field. We provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind. We have already exported various kinds of products to overseas countries and regions such as Indonesia, Vietnam, Myanmar, Korea, Malaysia, South African etc. | Model | Unit | CBD-A20 | CBD-A30 |
| Rated capacity | kg | 2000 | 3000 |
| Load center distance | mm | 600 | 600 |
| Front overhang | mm | 815 | 815 |
| Wheel tread | mm | 1211 | 1211 |
| Weight(with battery) | kg | 540 | 580 |
| Axle load,front/rear axle with full load | kg | 1080/1460 | 1600/1980 |
| Axle load,front/rear axle without load | kg | 470/170 | 490/190 |
| Wheel material | PU | PU | |
| Front wheel size | mm | φ250*80 | φ250*80 |
| Rear wheel size | mm | φ80*70 | φ80*70 |
| Lifting height of fork to ground | mm | 205 | 205 |
| Minimum height of fork to ground | mm | 85 | 85 |
| Overall length | mm | 1780 | 1780 |
| Fork size | mm | 65*180*1200 | 65*180*1200 |
| Overall width | mm | 805 | 805 |
| Fork width | mm | 550/685 | 550/685 |
| Radius of turning circle | mm | 1282 | 1282 |
| Driving speed,full load/no load | km/h | 4.5/6.2 | 4.5/6.2 |
| Lifting speed,full load/no load | m/s | 0.03/0.04 | 0.03/0.04 |
| Declining speed,full load/no load | m/s | 0.045/0.05 | 0.045/0.05 |
| Maximum climbing ability,full load/no load | % | 5/12 | 5/12 |
| Service brake | electromagnetic | electromagnetic | |
| Driving motor power | kw | 1.5(AC) | 1.5(AC) |
| Lifting motor power | kw | 2.2(DC) | 2.2(DC) |
| Battery 24v | Ah | 120/210 | 120/210 |
Our Factory
Our advantage includes:
- Stocking for standard models, delivery timely;
- Various customized products;
- Response quickly for inquiry and complain;
- Reliable quality and the competitive price;
FAQ
1, Q: How long is the warranty of your products?
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.
2, Q:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.
3, Q:How long can I get my order finished?
A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.
4, Q:Can you customize the configuration/logo/lable/color according to our requirements?
A:Yes.
5. Q:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.
2, Q:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.
3, Q:How long can I get my order finished?
A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.
4, Q:Can you customize the configuration/logo/lable/color according to our requirements?
A:Yes.
5. Q:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
