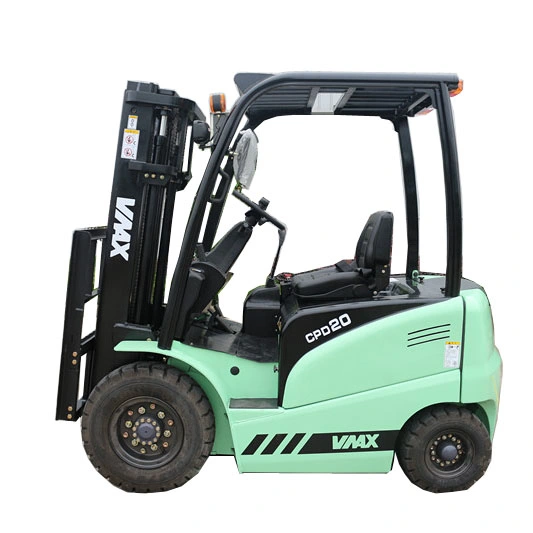

Mini forklift for warehouse 4 wheel battery powered Curtis controller 2.0 ton electric forklift truck for sale
2.0ton electric forklift
1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Specification of 2.0t electric forklift:
2.0ton electric forklift
1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Specification of 2.0t electric forklift:
Brand | VMAX | |
Model | CPD20 | |
Operation type | Drive in seat | |
Load capacity | kg | 2000 |
Load center | mm | 500 |
Power type | Electric | |
Number of wheels X=driving wheel(front/behind) | 2X/2 | |
Tire size (front/behind) | 7.00-12-12PR/18*7-8PR | |
Service brake | Hydraumatic pedal | |
Parking service | Mechanical manual | |
Mast tilt,Forward/backward | α/β(°) | 6/12 |
Mast height after mast fall | mm | 1995 |
Fork lift max height | mm | 4025 |
Free lift height | mm | 150 |
Standard Mast height | mm | 3000 |
Overhead guard height | mm | 2098 |
Overall length | mm | 2353 |
Fork overhang | mm | 468.5 |
From the rear | mm | 384 |
Wheelbase | mm | 1500 |
Minimum distance between the ground | mm | 110 |
Tread (front/behind) | mm | 970/950 |
Vehicle width | mm | 1170 |
Fork size | mm | '1070x122x45 |
Channel width, | mm | 4040 |
Turning radius | mm | 2172 |
Walking speed,loaded/withoutload | km/h | '12/14 |
lifting speed,loaded/load | m/s | 320450 |
Dropping speed loaded/without load | m/s | 476/426 |
Maximum traction,loaded | N | 18000 |
Max grade ability,loaded/without load | % | 13/15 |
Drive motor power | kw | 11 |
Lifting motor power | kw | 12 |
Level voltage/Capacitance | V/Ah | '48/630 |
Drive System | DC/AC | |
Electrical control system | Curtis from America | |

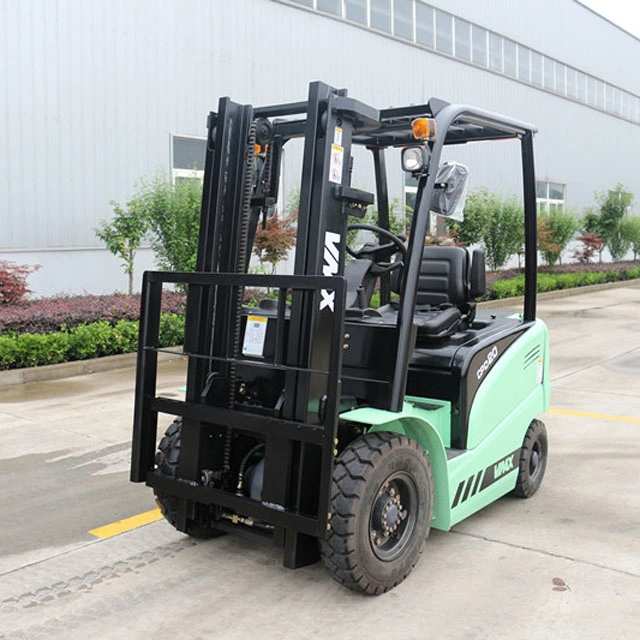

Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
FAQ
1. What Certificate do you have?
VMAX workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate and SGS.
2. Can you customize and design as the clients' requirement?
VMAX will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
VMAX workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate and SGS.
2. Can you customize and design as the clients' requirement?
VMAX will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
